Unit Type & Standard

Bellow are the shipping container standard dimensions:

 40' Dry Freight Container

Maximum Gross Weight: 67,200 lbs.
Tare Weight: 7,782 lbs.
Payload: 59,417 lbs.
Capacity: 2,376 cu. ft.
Internal Dimensions
Length: 39' 1"
Width: 7' 6"
Height: 7' 8"
External Dimensions
Length: 40'
Width: 8'
Height: 8' 6"
Door Opening
Width: 7' 6"
Height: 7' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

20' Dry Freight Container

Maximum Gross Weight: 67,200 lbs.
Tare Weight: 4,850 lbs.
Payload: 62,350 lbs.
Capacity: 1,164 cu. ft.
Internal Dimensions
Length: 19' 2"
Width: 7' 6"
Height: 7' 8"
External Dimensions
Length: 19' 10"
Width: 8'
Height: 8' 6"
Door Opening
Width: 7' 6"
Height: 7' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 45' High Cube Dry Container

Maximum Gross Weight: 71,656 lbs.
Tare Weight: 10,449 lbs.
Payload: 61,200 lbs.
Capacity: 3,037 cu. ft.
Internal Dimensions
Length: 44' 6"
Width: 7' 6"
Height: 8' 10"
External Dimensions
Length: 45'
Width: 8'
Height: 9' 6"
Door Opening
Width: 7' 6"
Height: 8' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

40' High Cube Dry Container

Maximum Gross Weight: 67,200 lbs.
Tare Weight: 8,223 lbs.
Payload: 58,976 lbs.
Internal Dimensions
Length: 39' 1"
Width: 7' 6"
Height: 8' 7"
External Dimensions
Length: 40'
Width: 8'
Height: 9' 6"
Door Opening
Width: 7' 6"
Height: 8' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 40' Open Top Container

Maximum Gross Weight: 67,200 lbs.
Tare Weight: 8,640 lbs.
Payload: 58,557 lbs.
Capacity: 2,260 cu. ft.
Internal Dimensions
Length: 39' 1"
Length (between top headers): 38' 4"
Length (between corner gussets): 37' 5"
Width: 7' 6"
Width (between top rails): 7' 3"
Height: 7' 8"
Height (under top rail): 6' 5"
External Dimensions
Length: 40'
Width: 8'
Height: 8' 6"
Door Opening
Width: 7' 6"
Height: 7' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

20' Open Top Container

Maximum Gross Weight: 67,200 lbs.
Tare Weight: 5,070 lbs.
Payload: 62,129 lbs.
Capacity: 1,164 cu. ft.
Internal Dimensions
Length: 19' 2"
Length (between top headers): 18' 5"
Length (between corner gussets): 17' 7"
Width: 7' 6"
Width (between top rails): 7' 3"
Height: 7' 6"
Height (under top rail): 7' 3"
External Dimensions
Length: 19' 10"
Width: 8'
Height: 8' 6"
Door Opening
Width: 7' 6"
Height: 7' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

40' Reefer Container

Maximum Gross Weight: 71,650 lbs.
Tare Weight: 10,846 lbs.
Payload: 60,803 lbs.
Capacity: 1,942 cu. ft.
Internal Dimensions
Length: 37' 11"
Width: 7' 6"
Height: 7' 3"
Lashings/Bottom Rail: 6 pieces/side
Loading Line (height): 7' 2"
External Dimensions
Length: 40'
Width: 8'
Height: 8' 6"
Door Opening
Width: 7' 5"
Height: 7' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 20' Reefer Container

Maximum Gross Weight: 67,200 lbs.
Tare Weight: 6,610 lbs.
Payload: 60,590 lbs.
Capacity: 950 cu. ft.
Internal Dimensions
Length: 17' 10"
Width: 7' 6"
Height: 7' 5"
Lashings/Bottom Rail: 4 pieces/side
Loading Line (height): 7' 2"
External Dimensions
Length: 19' 10"
Width: 8'
Height: 8' 6"
Door Opening
Width: 7' 5"
Height: 7' 4"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 40' High Cube Reefer Container

Maximum Gross Weight: 74,960 lbs.
Tare Weight: 10,120 lbs.
Payload: 64,840 lbs.
Capacity: 2,325 cu. ft.
Internal Dimensions
Length: 37' 11"
Width: 7' 5"
Height: 8' 4"
Lashings/Bottom Rail: 6 pieces/side
Loading Line (height): 8'
External Dimensions
Length: 40'
Width: 8'
Height: 9' 6"
Door Opening
Width: 7' 5"
Height: 8' 6"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 40' Platform

Payload: 86,000 lbs.
Internal Dimensions
Legth: 40'
Width: 8'

40' Flat Rack Container
Maximum Gross Weight: 99,212 lbs.
Tare Weight: 10,803 lbs.
Payload: 88,409 lbs.
Concentrated Load Over Center 2 Meter Span: 56,000 lbs.
Internal Dimensions
Length (between end panels): 39' 6"
Length (between corner posts): 38' 3"
Width (over bottom side rail): 7' 2"
Width (between corner posts): 7' 7"
Height (side rail to top casting): 6' 4"
External Dimensions
Length: 40'
Width: 8'
Height: 8' 6"

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 20' Flat Rack Container

Maximum Gross Weight: 74,950 lbs.
Tare Weight: 6,040 lbs.
Payload: 68,819 lbs.
Concentrated Load Over Center 2 Meter Span: 44,094 lbs.
Internal Dimensions
Length (between end panels): 19' 6"
Length (between corner posts): 18' 2"
Width (over bottom side rail): 7' 2"
Width (between corner posts): 7' 3"
Height (side rail to top casting): 7' 2"
External Dimensions
Length: 19' 10"
Width: 8'
Height: 8' 6"
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

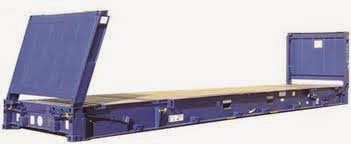

 40' Collapsable Flat Rack

Maximum Gross Weight: 99,212 lbs.
Tare Weight: 10,803 lbs.
Payload: 88,409 lbs.
Concentrated Load Over Center 2 Meter Span: 56,000 lbs.
Internal Dimensions
Length (between end panels): 39' 6"
Length (between corner posts): 38' 3"
Width (over bottom side rail): 7' 2"
Width (between corner posts): 7' 7"
Height (side rail to top casting): 6' 4"
External Dimensions
Length: 40'
Width: 8'
Height: 8' 6"
Collapsible Height: 2' 1
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

20' Tank Container

Payload: 6,764 lbs.
Capacity: 904 cu. ft.
Internal Dimensions
Length: 20'
Width: 8'
Height: 8' 6"
Shipping container standard dimensions use this chart to convert to metric sizes:
10 ft = 2 991 mm
20 ft = 6 058 mm
30 ft = 9 125 mm
40 ft = 12 192 mm
45 ft = 13 716 mm
The current widths are:
8’ = 2 438 mm
8.6’ = 2 590.8 mm
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

 10' Offshore/store Container

Length: 10ft / 3.05m
Width: 8ft / 2.44m
Height: 8ft 6ins / 2.59m
Weight: 1.5 tons / 1.52 tonnes
Floor Area: 72sqft / 6.69m2
Cubic Capacity: 560 cu ft / 15.89m2

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

10'Ft Portable reefer container for

      offshore/ marine/ cold storage

= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =

The list is representative of standard production ISO Shipping Containers, but there are many specialist builds of which dimensions and configurations may diversify from the above guide.

+++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
